PGM has always placed great emphasis on user experience. In order to make users more focused on their business and improve overall work efficiency, PDS software has been comprehensively optimized.
In the optimization process, we focus on retaining the advantages of the original software while incorporating the latest technological achievements. PDS still adopts the classic style of WINDOWS in its design, but we have made deep optimizations in software performance and tools. At present, the software provides dual interaction between icons and shortcut keys, allowing users to operate the software more intuitively and conveniently.
1.Interaction optimization: more convenient interaction design

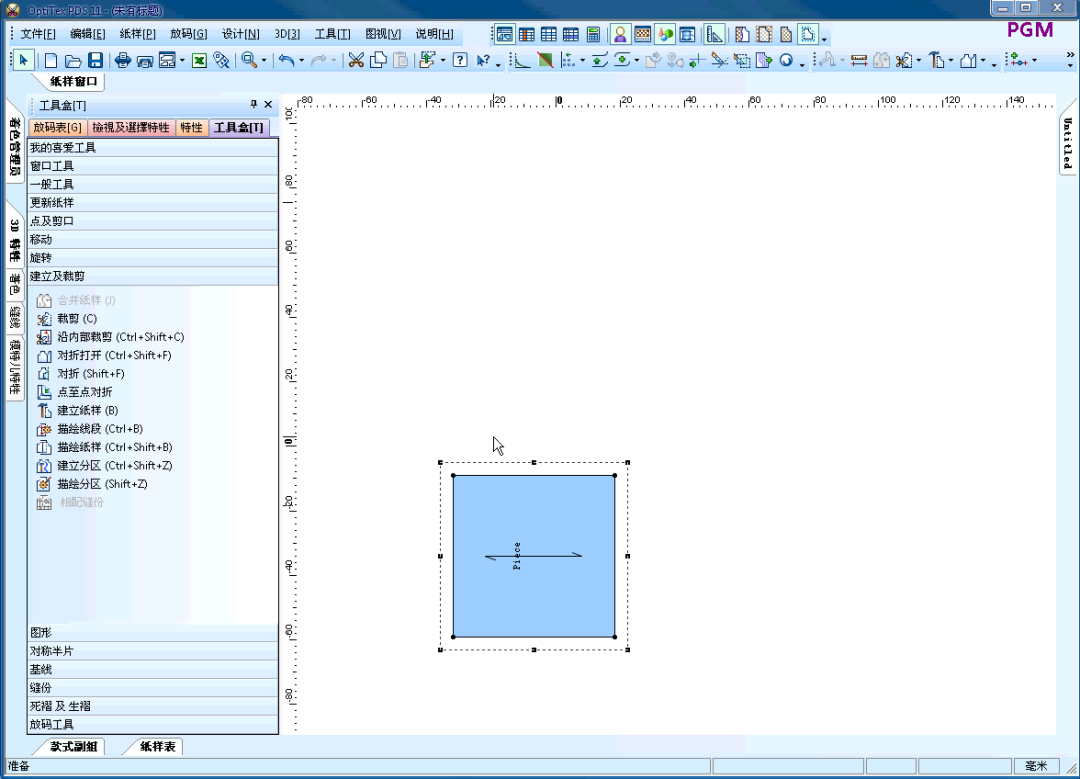

Tool box
Add a drawer style tool box window with tool classification function, allowing all tools to be customizable with shortcut keys, allowing users to customize their favorite tools for easy and quick search and use.
Add shortcut status operation bar
A custom shortcut toolbar has been added at the bottom of the screen, improving work efficiency and solving problems for users.
Dynamic Guideline
Dynamic guidelines can lock the direction at right angles to the selected line, lock the extension direction of the selected line, and lock the radius of the selected line for rotation. Dynamic guidelines can assist users in using software.
Automatically capture points on a line
Software can automatically capture the vertical/midpoint/tangent points of lines, and capture the adsorption prompt points.
Select Tool
With the same selection range and different mouse directions, different content can be selected——the mouse selects from left to right in full surround mode, while the mouse selects from right to left in half surround mode.
2.New tools: Update more powerful tools

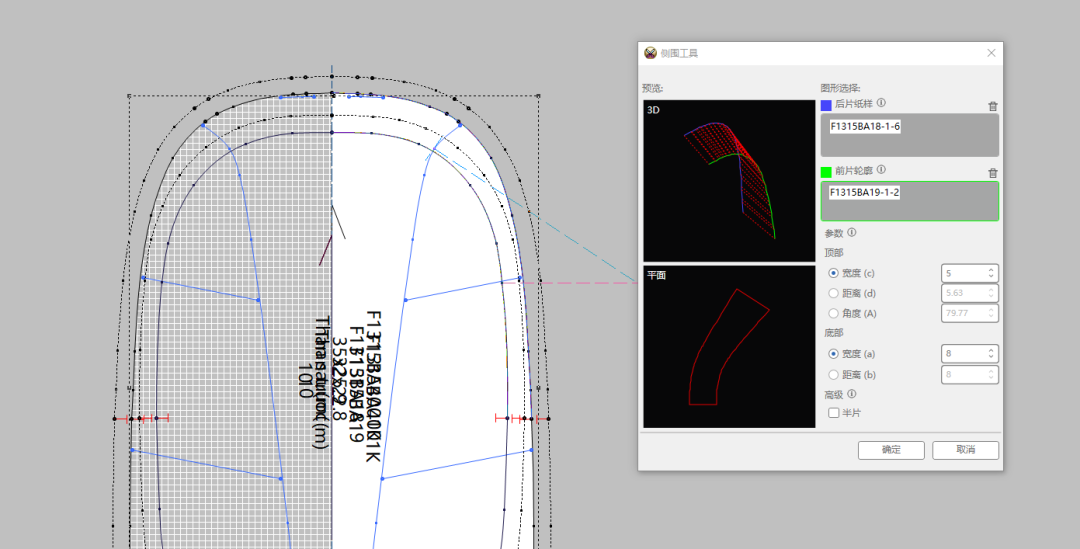

Side Gusset creation tool
Simplify the production of luggage side gusset, with real-time 3D effects visible, and directly generate side gusset patterns.
Corner of bag seam
DepthA/DepthB/Diagonal: Set horizontal, vertical, or diagonal distances to define the vertex position of the seam corner relative to the geometric shape of the piece.
Corner Seam
Corner Seam can be directly processed into Round, Arc, and Wavy Line by tools.
Add line-line folding
Exchange piece information
Exchange piece characteristics by setting selection.
Add Drawing Preview
Add drawing preview for convenient inspection before output.
Translation of Piece Name
Translation table dictionary provided by users; The translation object is the piece name; Can search for alternative languages.
Tech Pack
Tech Pack Essentials feature automatically generates a technology pack for the current style, including basic 2D and 3D information. There are piece information, decal information, 3D rendering image, Colorway image, measurement data and size, stitching data, and material data.
Report Designer
According to the needs of the enterprise, set the table in the Table Customization Window, generate suitable reports for the enterprise itself, and facilitate enterprise management.
Function optimization: simpler interface design

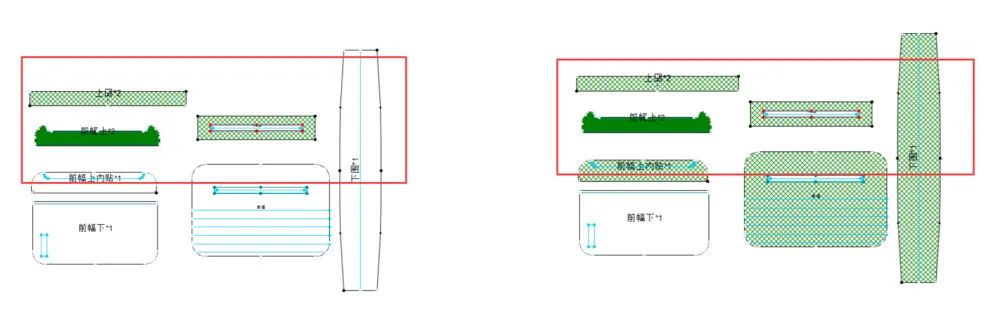

Box-select Sorting and Extension Tools
Support quickly organize internal lines which can be box-selected for shortening or lengthenig.
Undo of Expansion and Contraction
Lock the xy scaling value for Expansion and Contraction, and increase the Undo button.
Save DXF Database Settings
Save data information as a configuration file for easy switching between different customers when using it.
Unmarked Pattern
For some pieces that do not require participation in marking, attributes can be set. Applicable to pieces such as WP/STD, recut, and data information.
WP/STD Modification Linkage Function
Corner Dart Tool
Shared Pattern Import
Sample Drawing
We will continue to monitor user feedback, collect and analyze data to understand changes and trends in user needs. We will continuously optimize software functionality and performance based on these feedback and data, providing users with more thoughtful and practical services.
